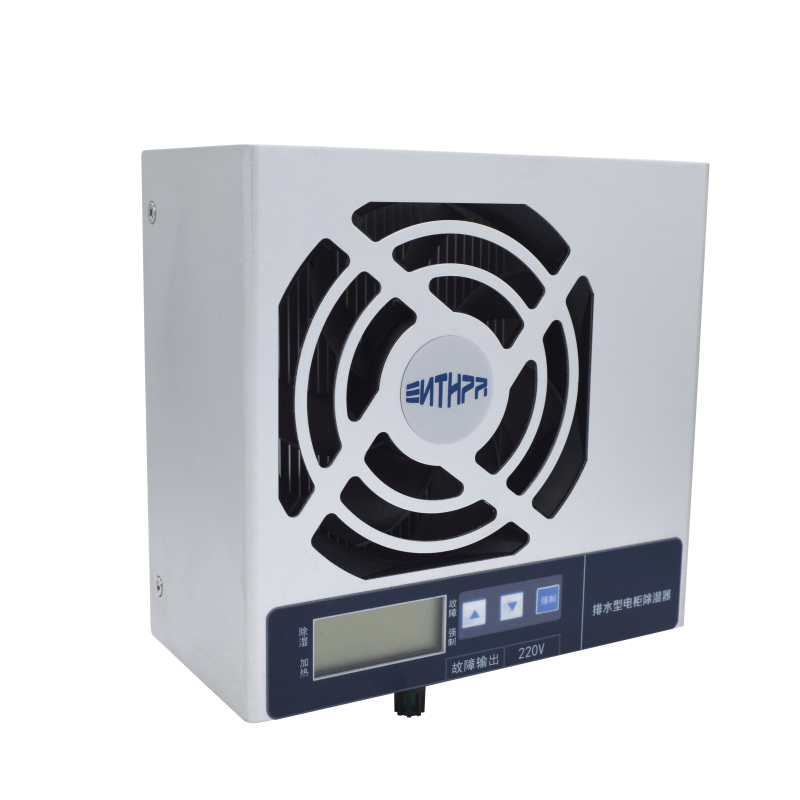

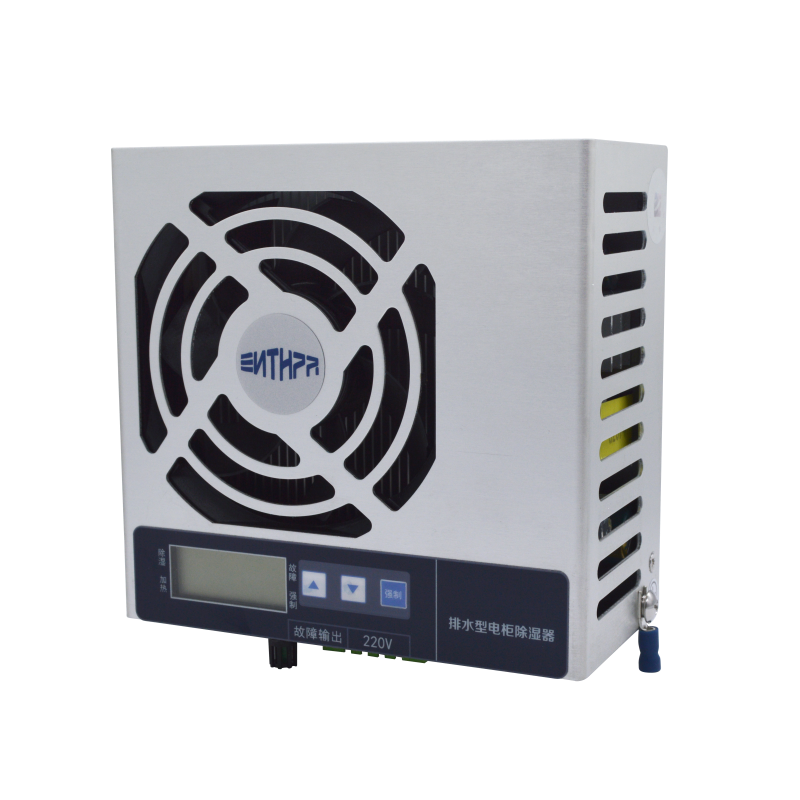

Product Overview

The HD6-60D-350 Drainage Cabinet Dehumidifier is an advanced moisture-control device designed specifically for electrical cabinets, automation equipment, communication enclosures, and industrial control systems.

Using electronic refrigeration technology, the unit creates a low-temperature condensation zone inside the cabinet. Humid air is drawn through this zone, where moisture condenses into water droplets and is efficiently drained out. This continuous cycle maintains a dry, stable environment and protects electrical components from moisture-related failures.

With automatic humidity control, an LCD display, intelligent fault detection, and drainage-based operation, the HD6-60D-350 offers long-term, maintenance-free protection for mission-critical equipment.

Key Features

1. High-Efficiency Moisture Removal

• Condensation-based dehumidification

• Moisture removal capacity: 350 ml/24h (35°C, 85%RH)

• Ideal for environments with persistent high humidity

• Adjustable humidity threshold (default: 65%)

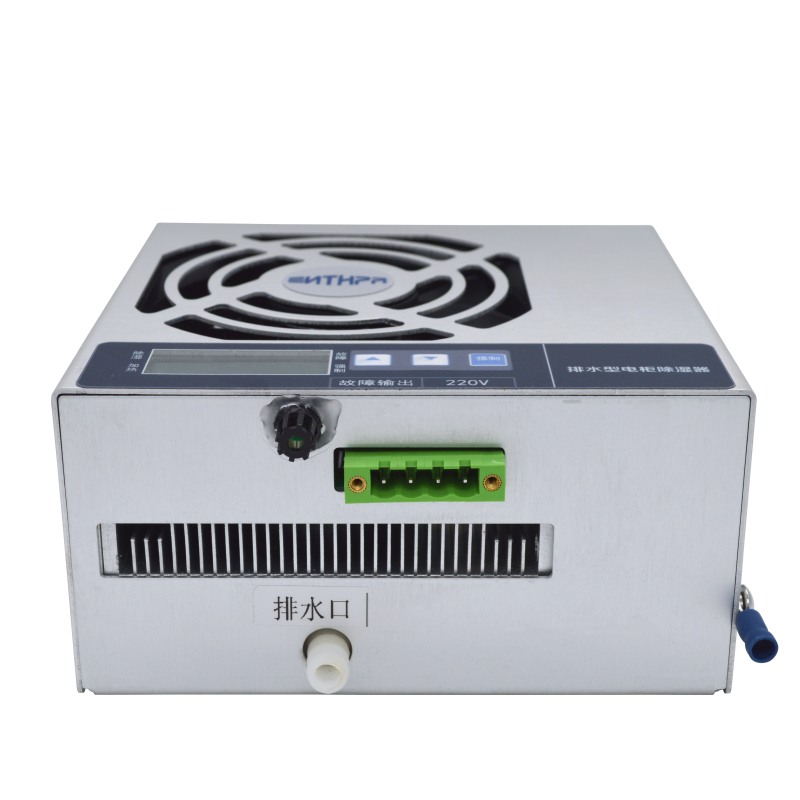

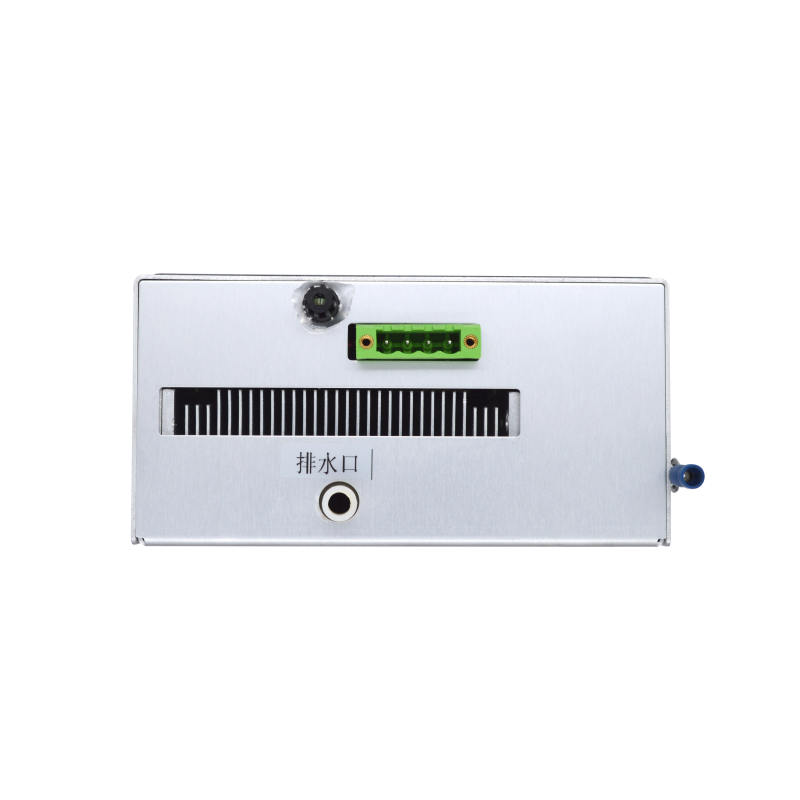

2. Continuous Drainage Design

• No water tank required

• Suitable for 24/7 industrial applications

• Perfect for unattended equipment cabinets

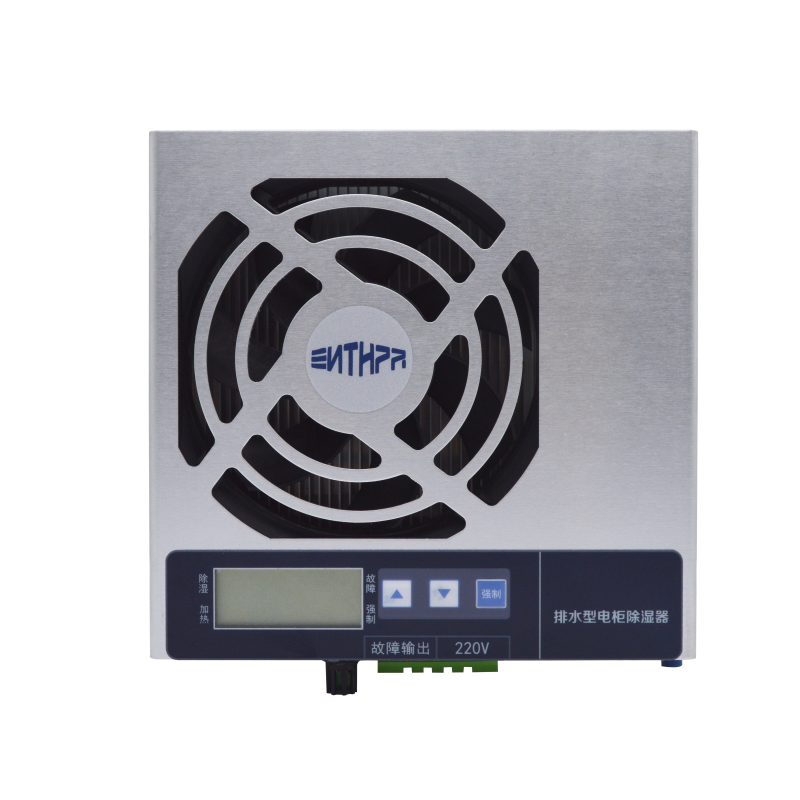

3. Intelligent Controls & LCD Display

• Real-time temperature and humidity display

• Automatic mode & forced-operation mode

• 48-hour timed forced operation

• Auto-save humidity threshold settings

• Built-in power-on self-test for all key components

4. Enhanced Safety & Reliability

• Electronic self-diagnostics (cooling plate, fans, temperature probe)

• Fault output node (normally closed; opens during faults)

• Fire-resistant design with over-current protection

• Wide operating temperature range: 5–70°C

5. Industrial-Grade Construction

• Durable alufer aluminum alloy shell

• Backplane or DIN-rail installation

• Compact size for tight cabinet spaces:
  134.4 × 129.4 × 67.4 mm

Applications

The HD6-60D-350 is ideal for environments where moisture poses a threat to electrical reliability:

• Electrical control cabinets

• PLC automation cabinets

• Power distribution cabinets

• Communication and network enclosures

• Outdoor industrial equipment cabinets

• Smart transportation systems

• Robotics and automation systems

• Data center infrastructure equipment

Prevents:

• Condensation on circuit boards

• Corrosion of metal components

• Equipment malfunction or false triggering

• Insulation deterioration and electrical leakage

Installation Options

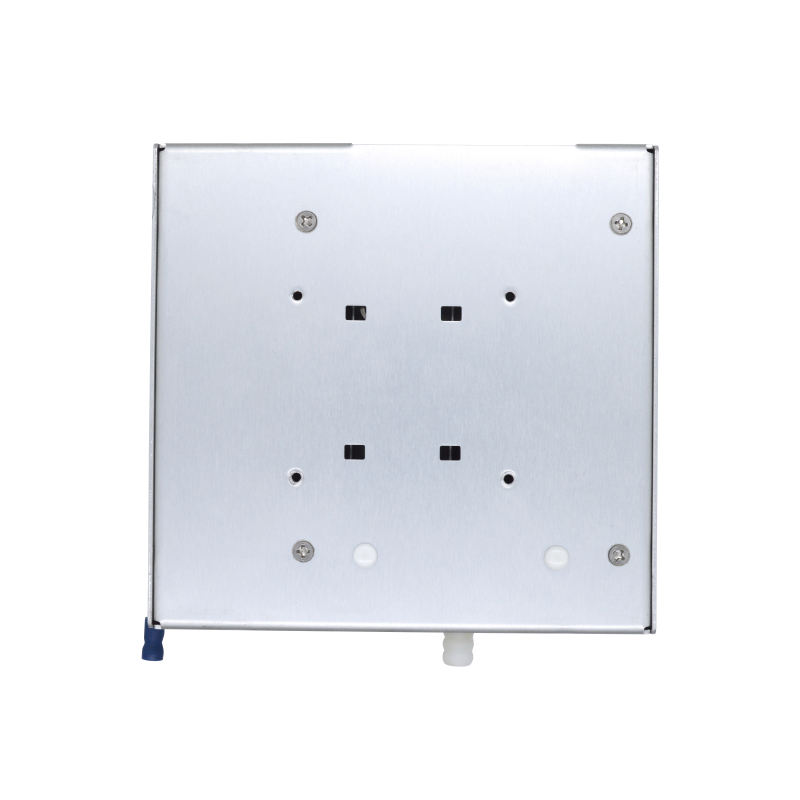

Backplane Installation (Standard)

Mounts directly onto a standard 75mm × 220mm equipment backplane.

DIN-Rail Installation (Optional)

Compatible with conventional industrial cabinet rails, enabling flexible layout configuration.

Ensure the front ventilation area remains unobstructed and allow space above the device for heat dissipation.

Operating Modes

Automatic Mode

• Activates when ambient humidity exceeds the threshold

• Stops automatically when humidity drops 10% below the set value

• Fan continues running briefly to extend system life

Forced Operation Mode

• Press "FORCE" to start continuous dehumidification

• Runs up to 48 hours before returning to automatic mode

• Press again to exit the forced mode immediately

Power-On Self-Test

The system automatically checks:

1. Up key

2. Down key

3. Force key

4. Cooling plate function

5. Fan operation

6. Temperature probe status

Faults are displayed on the LCD and trigger node disconnection for safety.

Warranty

• 36-month warranty under normal use

• Paid maintenance available after the warranty period

• Damage caused by improper use, power anomalies, or environmental conditions outside specifications is not covered

Why Choose the HD6-60D-350?

• Designed specifically for electrical cabinets

• High reliability in harsh industrial environments

• Intelligent, maintenance-free moisture control

• Continuous drainage for long-term operation

• Helps prevent costly downtimes and equipment failures
