Ensuring smooth, safe, and efficient door operation is essential for modern commercial buildings. For revolving doors—often found in hotels, airports, shopping malls, and office complexes—the sensor system plays a critical role in detecting approaching pedestrians and activating the door at the perfect moment.
The FALCON Automatic Door Microwave Radar Motion Sensor is engineered specifically for these demanding environments, delivering exceptional detection accuracy, fast response time, and long-term reliability.
Powered by advanced 24.150 GHz microwave Doppler radar, the FALCON sensor continuously monitors movement within its detection zone. Unlike infrared sensors that rely on temperature changes, microwave radar is unaffected by lighting conditions, weather, or background heat—making it a superior choice for high-traffic revolving doors.
Fast Response & High Sensitivity
Detects motion speeds as low as 5 cm/s, ensuring even slow-walking pedestrians are recognized instantly.
Wide Installation Range
Compatible with mounting heights between 1.8m and 5m, ideal for various revolving door designs.
Low Power Consumption
Operates efficiently on 12–24V AC/DC, consuming less than 2W.
Directional Detection
Supports unidirectional and bidirectional modes, allowing energy-saving control tailored to building traffic flow.
All-Weather Reliability
Works in temperatures from –25°C to +70°C, suitable for diverse indoor/outdoor environments.

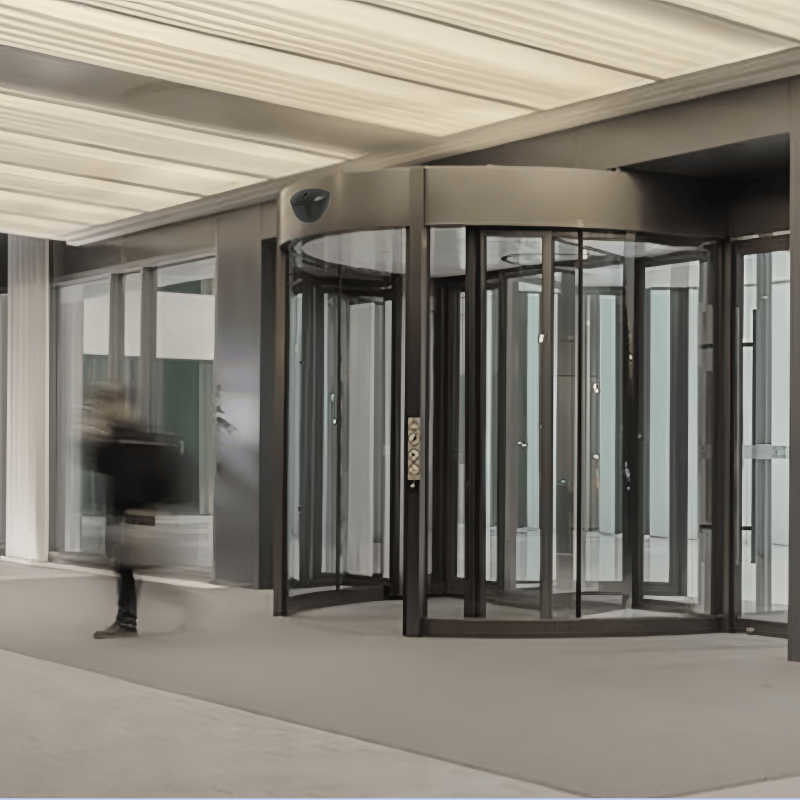

Revolving doors require precise timing to start rotating as users approach.
The FALCON sensor ensures seamless activation by detecting movement instantly—creating a smooth, welcoming entrance experience.
Accurate and timely detection helps prevent:
Late activation
Unexpected door movement
Pedestrian-door collisions
This makes revolving doors safer for elderly guests, children, and visitors carrying large luggage.
With unidirectional detection, the door responds only when people are approaching.
This minimizes unnecessary rotations and helps preserve indoor temperature—especially important for hotels, malls, and climate-controlled buildings.
Microwave radar is stable in environments with:
Reflections from glass walls
Changing sunlight
Heat sources
Temperature fluctuations
This greatly reduces false activations and extends the lifespan of the door mechanism.
For locations with constant foot traffic—like transportation hubs or large commercial centers—the FALCON sensor delivers the reliability and durability required for continuous operation.
The FALCON Microwave Radar Sensor is ideal for:
Automatic revolving doors
Sliding and swing doors
Commercial entryways
Hotels & office towers
Hospitals & airports
Shopping malls & retail centers
Its versatility makes it a practical, unified sensing solution for facility managers and system integrators.
The FALCON Automatic Door Microwave Radar Motion Sensor is engineered to deliver superior detection performance, increased safety, and enhanced energy efficiency for revolving door systems. With industry-leading microwave radar technology and robust environmental adaptability, it is the perfect upgrade for modern commercial buildings seeking reliability and seamless user experience.
