OSPREY Laser TOF Barrier Gate Sensor | Parking & Gate Safety Detector

Product Overview

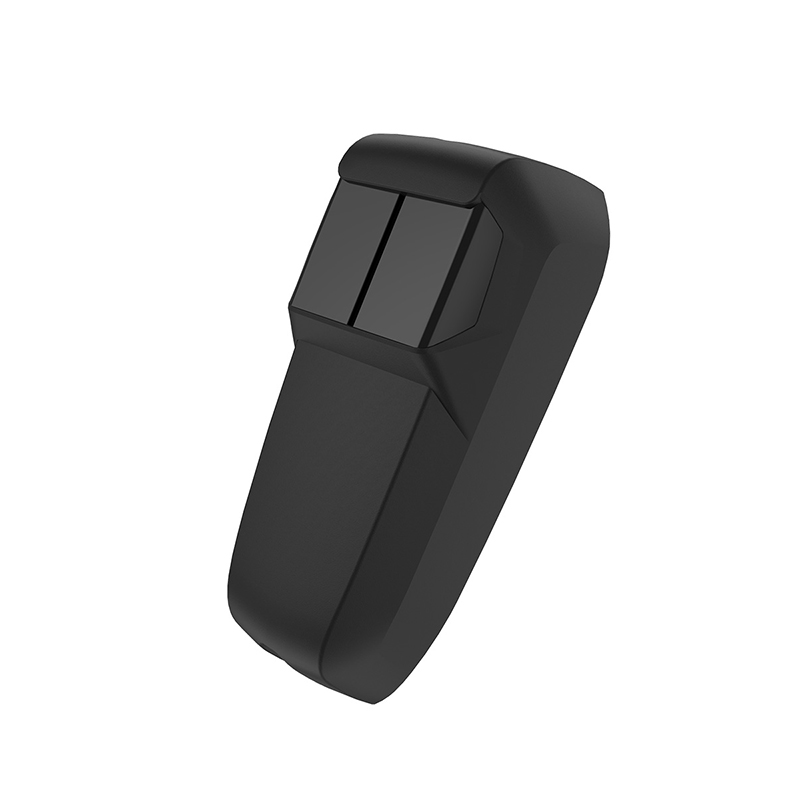

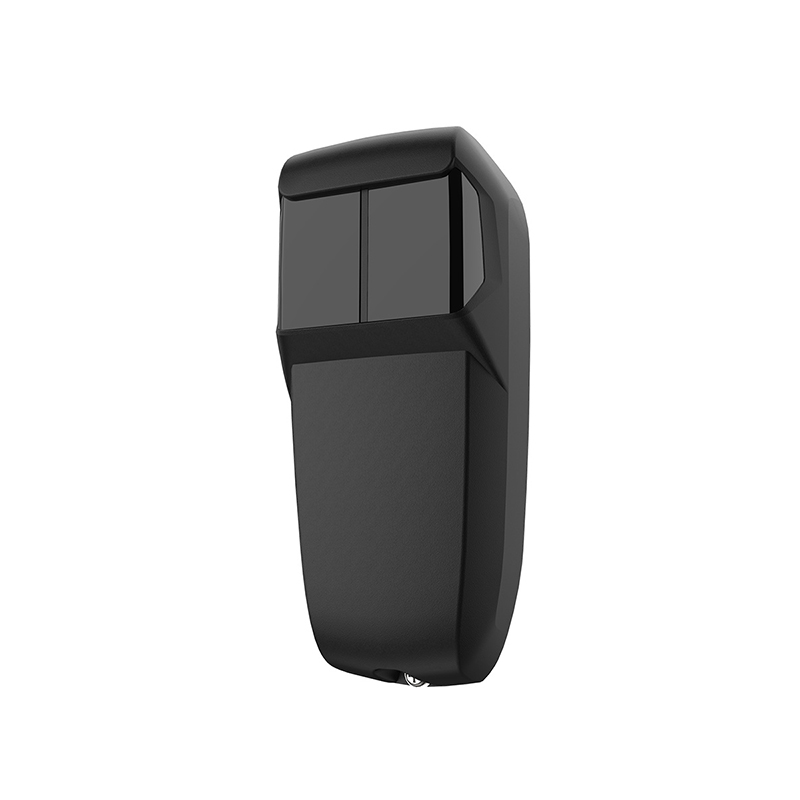

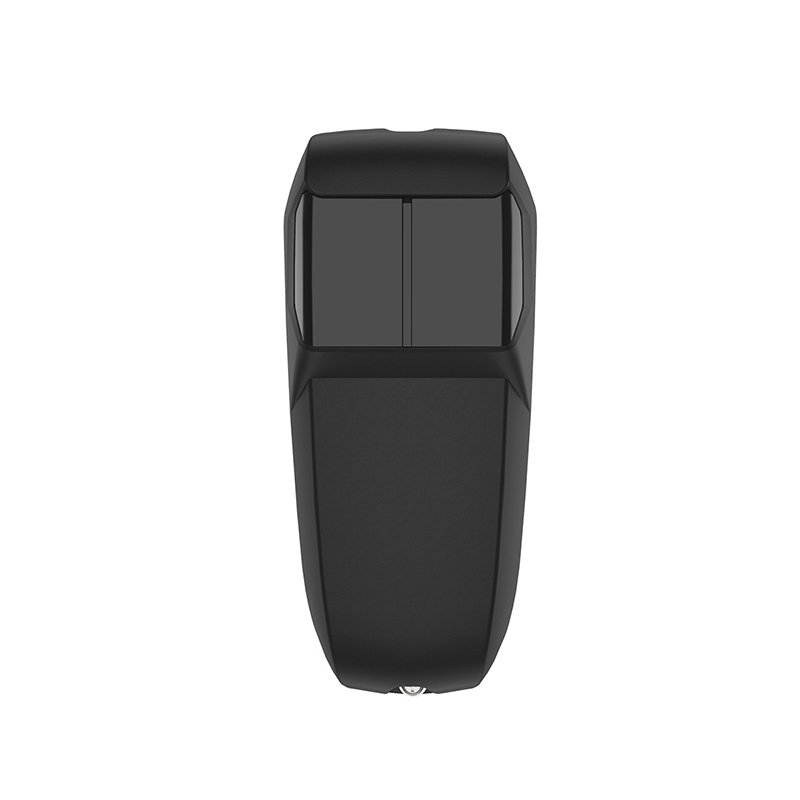

The OSPREY sensor is a high-performance laser Time-of-Flight (TOF) safety sensor developed for use with traffic/parking boom barriers, sliding gates, swing gates and automatic barrier systems. Unlike traditional loop detectors or infrared photocells, OSPREY requires no ground works or multiple units: one compact transceiver handles detection and barrier safety in one device. With superior sunlight and lamp interference immunity and easy installation, it delivers reliable pedestrian and vehicle protection.

Key Features & Benefits

• Uses laser TOF technology for accurate distance measurement and object detection.

• Single unit (transceiver) covers both pedestrian and vehicle detection—no induction loops or photocells required.

• Detection range: up to 0-8 m indoors, 0-4 m outdoors (adjustable).

• Power supply: DC 12-24 V AC/DC, standby power consumption under 1.5 W.

• Fast response time: < 100 ms.

• Relay output: max 125 V AC / 30 V DC, switching current up to 1 A.

• Operating temperature: –30 °C to +60 °C, making it suitable for harsh outdoor environments.

• Durable ABS & PC housing ensures long-lasting performance.

• Easy to install and maintain, reducing costs and downtime compared to traditional detection systems.

Applications

• Traffic barriers & parking boom gates

• Industrial sliding gates and swing gates

• Gate automation systems needing reliable object/pedestrian detection

• Environments where ground-cutting loops are impractical or costly

• Outdoor installations with high light or interference conditions

Why Choose OSPREY?

• Cost-effective alternative to induction loops or photocells—no roadworks required.

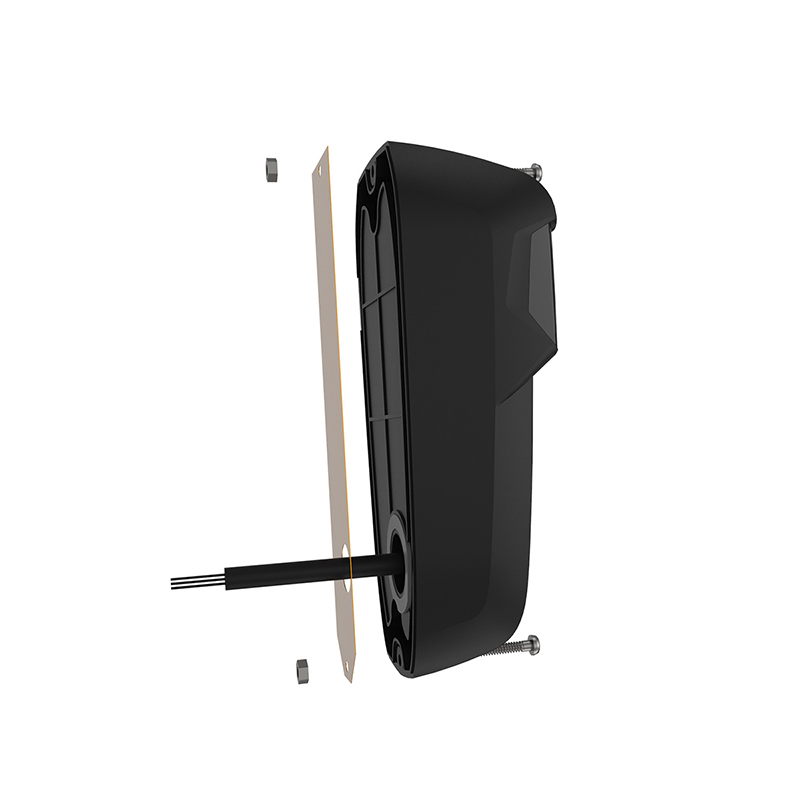

• Compact one-piece design simplifies installation and maintenance.

• Greater resilience to sunlight, vehicle lamps and metal interference compared to microwave radar.

• High sensitivity and quick reaction safeguard both vehicles and pedestrians.

• Robust performance in a wide range of temperature and environmental conditions.
