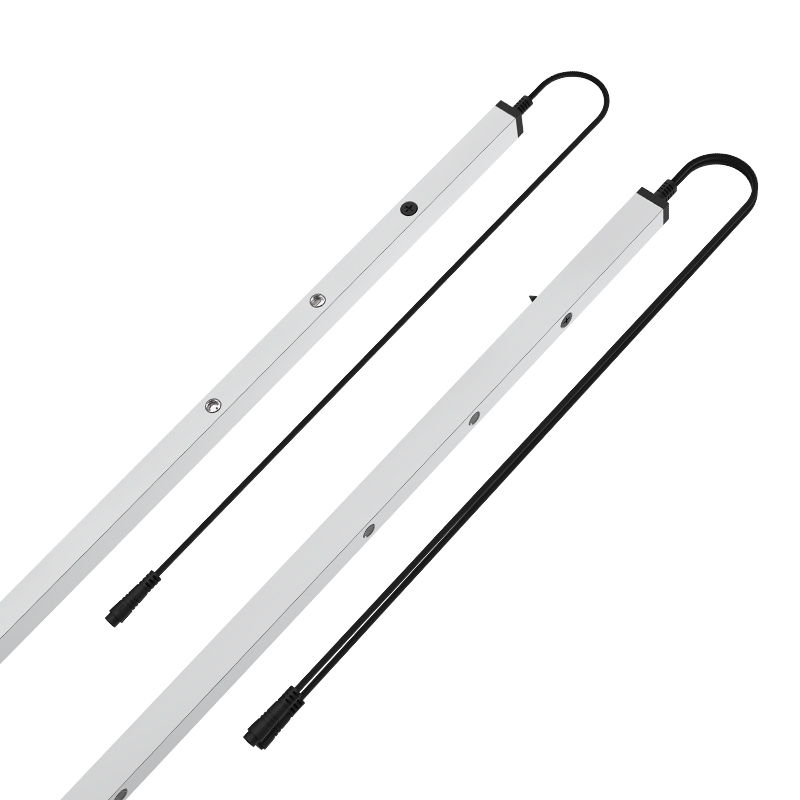

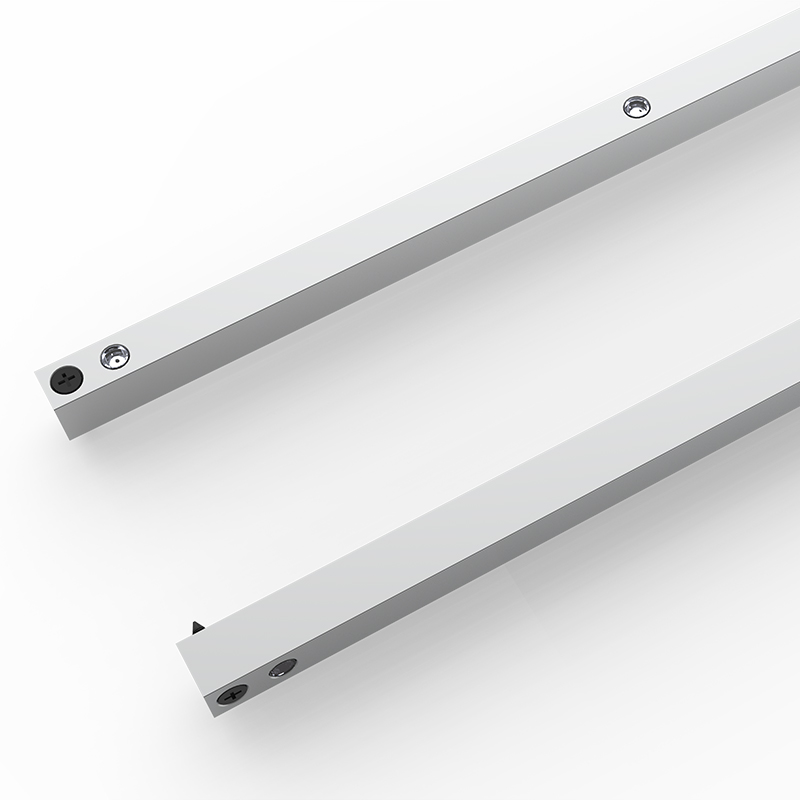

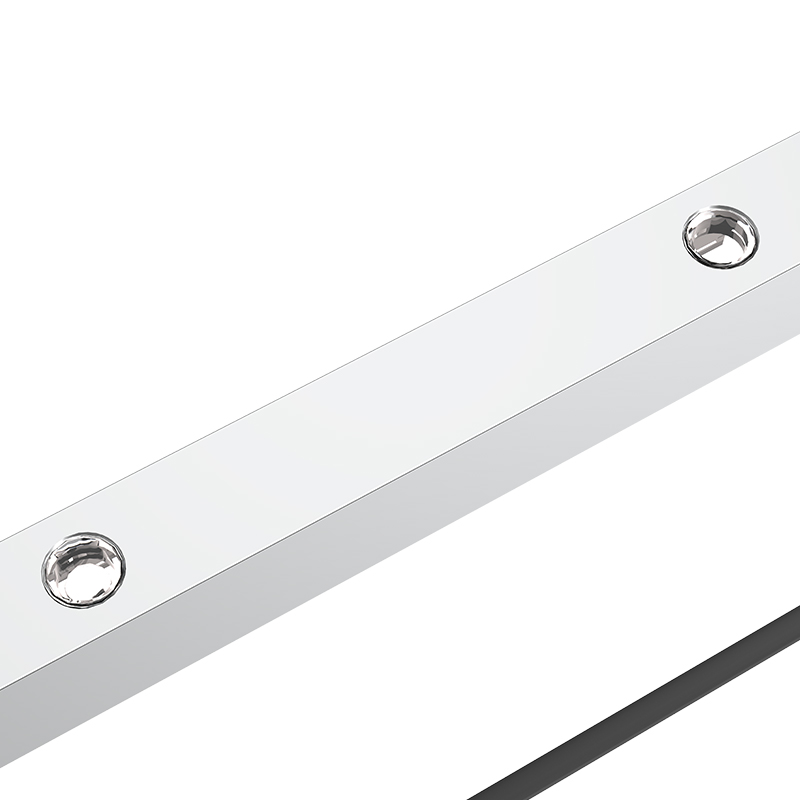

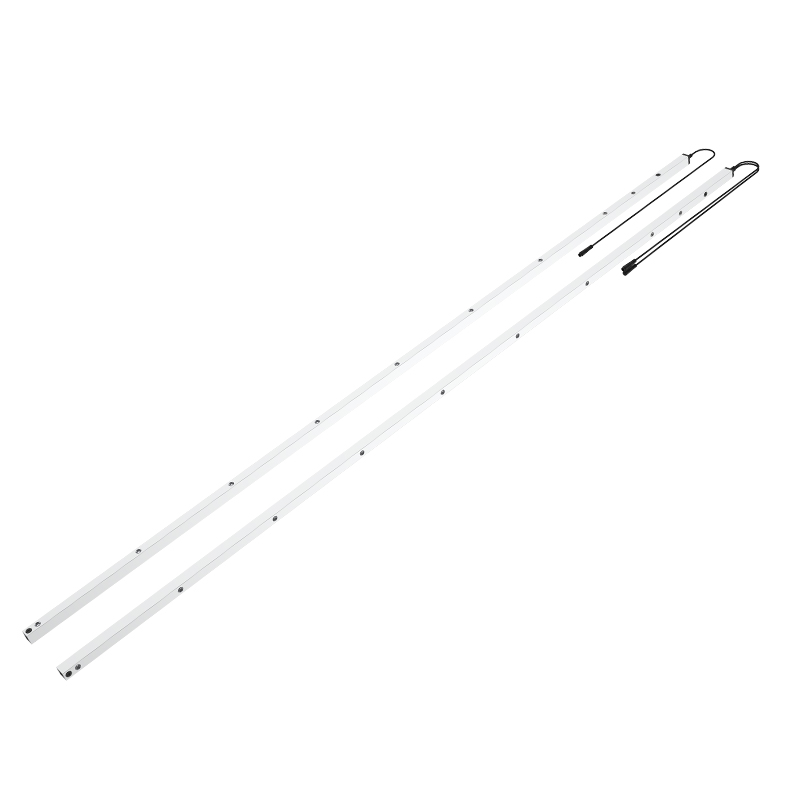

2SC01‑01 Criss-Cross Beams Safety Light Curtain for High-Speed & Sectional Door Sensor

Product Overview

The 2SC01‑01 Criss‑Cross Beams Safety Light Curtain, developed by U‑Sensors (Qinuo Electronics), is a compact, high-performance safety sensor designed specifically for high-speed doors and sectional doors. With an impressive operating range of up to 10 meters, this light curtain ensures reliable detection of people or objects to prevent entrapment and guarantee safe operation – even at door speeds up to 1.6 m/s.

Key Features & Advantages

• Criss‑Cross Beam Design: Provides enhanced detection coverage to reliably sense objects crossing the safety zone.

• High-Speed Compatibility: Rated for automatic doors with speeds up to 1.6 m/s, making it ideal for fast-rise or industrial sectional doors.

• Robust Construction: IP67-rated housing ensures resistance against dust, water, and harsh environments.

• Flexible Mounting: Emitter and receiver units can be installed directly in guide rails or at the front/back of the door frame, allowing both blanking and non-blanking versions.

• Short-Circuit Proof Output: Semiconductor output with PNP/NPN (push-pull) for reliable and safe signal transmission.

• Electrical Synchronization: Provides increased immunity to ambient light interference, minimizing false alarms and optimizing detection reliability.

• Real-Time Self‑Check: Continuous self-monitoring enhances performance stability and safety integrity over time.

Applications

This safety light curtain is ideal for:

• Industrial high-speed doors

• Sectional doors in warehouses or logistic centers

• Situations where person or object detection is critical to prevent entrapment

• Environments requiring weatherproof safety devices (due to its IP67 rating)

Why Choose U‑SENSORS 2SC01‑01?

1. Safety First: The criss-cross beam technology ensures a reliable “safety net” to catch any intruding object or person.

2. Performance Under Pressure: Built to handle the high speeds of modern industrial doors without compromising on reaction time.

3. Low Maintenance: With real-time self-check and a rugged IP67 design, this unit offers durable, worry-free operation.

4. Flexible Installation: Whether you need to mount it in the door rail or on the frame, the 2SC01‑01 gives you options.

5. Interference Resistance: Thanks to electrical synchronization, it maintains stability even in high-light or noisy electromagnetic environments.

Certifications & Compliance

• Built to meet rigorous industrial safety standards.

• Durable IP67 rating ensures ingress protection against water and dust.

• Reliable semiconductor outputs (PNP/NPN) for safe signal integration.

Ordering & Support

• Inquiry: Contact us via the “INQUIRY NOW” button on the product page.

• Customization: We offer both blanking and non-blanking versions to fit your installation needs.

• Technical Resources: Full datasheets, mounting guides, and wiring diagrams are available on request.
